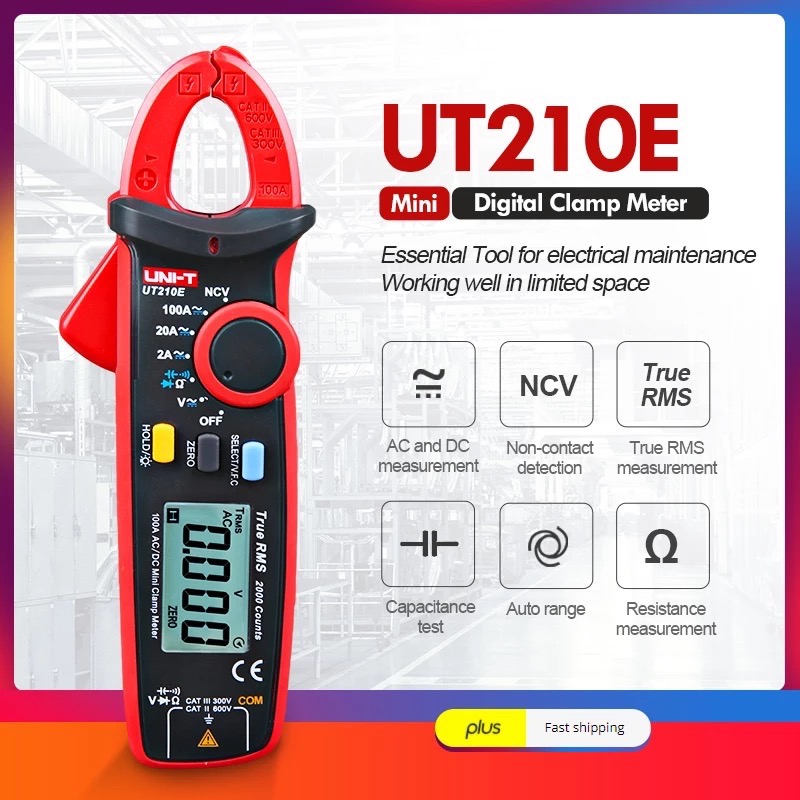

UNI-T UNI T Mini Clamp Meter UT210E ดิจิตอล True RMS AC/DC เครื่องทดสอบแรงดันไฟฟ้า VFC ประจุ Non Contact มัลติมิเตอร์

Spell♂UNI-T UT210E Mini Digital Handheld Clamp Multimeter Backlight LCD True RMS Voltmeter Ammeter Ohmmeter AC/DC Voltage Current Capacitance Resistance NCV Continuity Test Diode Tester with Storage Bag

This digital clamp meter

Features high reliability, safety, precision and compact design. Its resolution ratio is 1mA. Maximum range has maximum rage of 100A AC/DC; particular VFC start mode. Entering this mode can accurately measure voltage and current which has VFC frequency conversion. Voltage or current response display is true valid value. Whole range overload protection, reliable measurement accuracy and unique appearance design makes it an outstanding new generation functional electrician/electric power measurement instrument.

Features:

Multi-purpose clamp meter can measure AC/DC voltage, AC/DC current, NCV noncontact electric field, capacitance, diode, resistance and circuit on-off.

Whole range overload protection, reliable measurement accuracy.

Backlight LCD with maximum 2000 counts diaplay.

Data hold, auto range, automatic power-off & low battery prompt functions.

Mini size, portable for field, laboratory, shop, home and many other applications.

Specifications:

Model: UT210E

DC Voltage Range: 200mV/2V/20V200V/600V

DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V

AC Voltage Range: 2V/20V/200V/600V

AC Voltage Resolution: 1mV/10mV/100mV/1V

Resistance Range: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ

Circuit Resolution: 0.1Ω

Diode Resolution: 1mV

Capacitance Range: 2nF/20nF~200μF/2mF~20mF

Capacitance Resolution: 1pF/10pF~100nF/1μF~10μF

DCA Range: 2A/20A/100A

DCA Resolution: 1mA/10mA/100mA

ACA Range: 2A/20A/100A

ACA Resolution: 1mA/10mA/100mA

General Characteristic:

Maximum Overload Protection for Clamp Head Terminal: 100A

Maximum Display: 2000 counts, update 2~3 times per second

Diode: approx. 3.2V

Range: automatic(exclusive of electricity gear)

Polarity: automatic

Work Temperature: 0°C~40°C

Relative Humidity: 0°C~30°C: 75%, 30°C~40°C: 50%

Storage Temperature: -10°C~50°C

Work Altitude: 0~2000m

Battery: 2 * 1.5V AAA batteries(not included)

Product Size: 175mm * 60mm * 33.5mm

Product Net Weight: 170g / 6oz

LCD Size: 39.3mm * 21.5mm

Maximum Clamp Head Size: 17mm

Package Size: 18.6 * 7.2 * 5.9cm / 7.3 * 2.8 * 2.3in

Package Weight: 311g / 11oz

Package List:

1 * Multimeter

1 * Pair of Test Probe

1 * Storage Bag

1 * User Manual(English)
